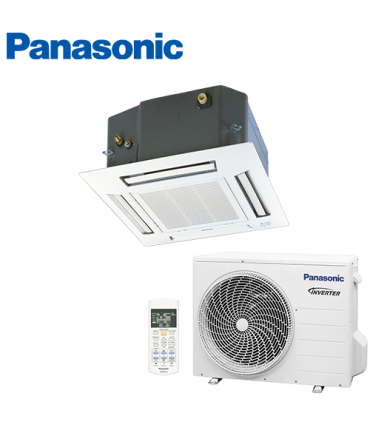

Aer Conditionat CASETA PANASONIC CS-E12PB4EA / CU-E12PB4EA Inverter 12000 BTU/h

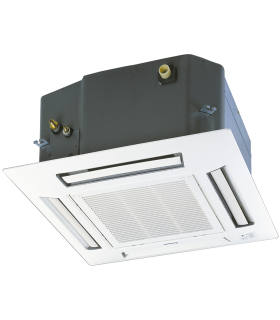

4 Way 60x60 Cassette Inverter

· New 18 and 21 kW models
· Can be controlled by Intesishome, KNX, EnOcean and Modbus
· Designed for easy installation in the standard European 60x60 ceiling grid
· Operation down to -10°C in cooling and heating modes

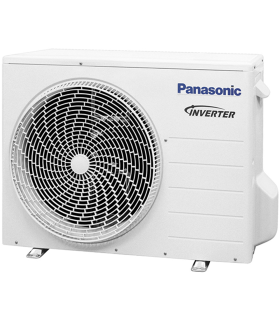

· Ultra compact outdoor units for easy installation

Specially designed for offices, retail and restaurant applications, this cassette fits perfectly into 60x60 or 70x70 ceiling grids.
Featuring the best efficiency in its category (heating and cooling up to -10°C) this new cassette in 9 and 12 kW versions can also be connected to KNX, Modbus, EnOcean interfaces for easy integration with your BMS systems.
With the new Intesishome interface, you can also control the cassette from your smartphone and internet very easily!

Great efficiency the whole year

Original Panasonic Inverter technology and a high performance compressor provide top-class operating efficiency. This lets you enjoy lower electricity bills while contributing to environmental protection.
Hide Away range beyond ErP standard. Hide Away range provides higher Season Efficiency. This warranties major savings will be achieved within all year long. Also stand by consumption is extremely low, as low as 0,001 kW/h. As result Hide Away range reaches A+ in cooling and heating (KIT-E9-PD3EA).

Inverter technology

Panasonic Inverter air conditioners have the flexibility to vary the rotation speed of the compressor. This allows to use less energy to maintain the set temperature while also being able to cool the room quicker at start up. So you can enjoy better savings on your electricity bills while maintain cooling comfort.

Powerful real capacity

Panasonic offers you the real capacity in your system. No matter which cooling and heating needs you have, Panasonic will provide you the full rated capacity. Why is this important. If you install smaller capacity than you need, that system will be working more intensively at high speed, it means higher running cost and shorten system life period.  Even 10% lower capacity will impact negatively in your bills.

Indoor unit drain piping

The height of drain may be possible up to 750 mm.

Internet Control

Control your air conditioning from wherever you are. Control your comfort and efficiency with the lowest energy consumption. Using smartphone, tablet or PC via internet. This optional accessory connects to unit through Infrared port.

Internet Control PAW-IR-WIFI-1 (Optional)

Features

HEALTHY AIR

· Odour-removing function

ENERGY, EFFICIENCY AND ECOLOGY

· Maximum efficiency Inverter system

COMFORT

· Super Quiet
· Powerful mode
· Automatic vertical airflow control ambient temperature
· Hot start mode
· Real time clock with single ON&OFF timer
· Automatic restart after power cut

EASE OF USE

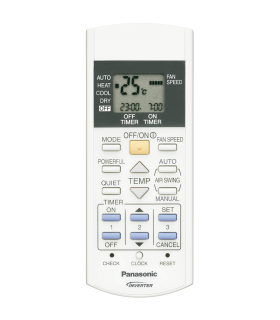

· Ergonomic infrared remote control

EASY INSTA LLAT ION AND MAINTENANCE

· Removable, washable panel of the indoor unit
· Top panel maintenance access for the outdoor unit
