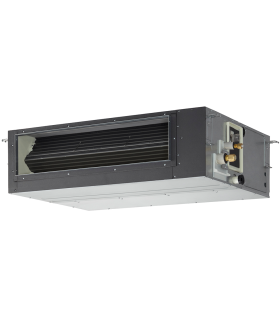

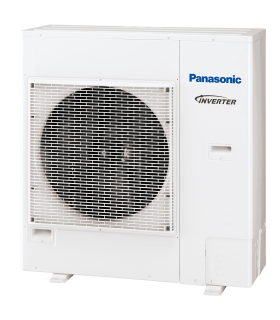

Aer Conditionat DUCT PANASONIC ELITE PAC-I INVERTER S-60PF1E5B / U-60PE2E5A 220V 22000 BTU/h

High Static Pressure Hide Away PACi Inverter+.
High heating capacity at -7°C
The ducted systems are the ideal solution for flexible, concealed air conditioning and the optional 200mm spigots ensure simple, hassle-free connection to spiral ductwork.

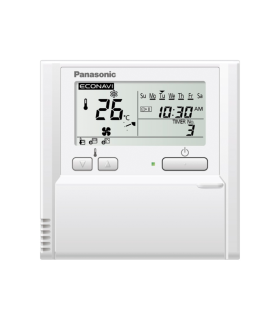

New wired remote controller with Econavi function control

Easy to use, attractive, clear design, with new demand control functions and energy consumption display! This useful feature makes this remote control unique!
The new CZ-RTC3 wired remote control is ideal for integration into the most demanding interior architectures.
The touch panel features a very sleek and easy to use display, which with its compact display is only 120mm x 120mm x 16mm.

New Econavi Sensor

The all new Econavi Sensor detects presence in the room, and quietly adapts the PACi or VRF air conditioning system in order to improve comfort and maximise energy savings.

The static pressure outside the unit can be increased up to 150 Pa

More powerful drain pump

Using a high-lift drain pump, drain piping can be elevated up to 785 mm from the base of the unit.

· Extremely quiet operation from 26 dB(A)
· Auto restart after power failure
· Auto changeover
· Twin, triple and double-twin split options
· DC FAN for better effi ciency and control
· Built in drain pump
· Easy connection and control of external fan or ERV using the connector PAW-FDC on the indoor unit PCB. The external device can be control by the remote control of the Panasonic indoor unit

Air inlet

The unit features air inlet on one side, air outlet on the other side. The air inlet fi lter can be pulled out from the side of the unit and can be folded. Easy access if through the maintenance opening. When air inlet duct (fi eld supplied) is connected on suction side, remove the fi lter, frame and insulation materials on both sides of the unit. Connect the duct on the suction side of the unit by using prepared holes on the unit.

Control your air conditioning from wherever you are at home. Control your comfort and effi ciency with the lowest energy consumption

Panasonic has always offered its customers the most efficient Heat Pumps and Air Conditioners. Now it has taken a step forward and presents a control solution taking advantage of the latest Cloud Technology to enable you to manage your climate system from anywhere in the world.
Control your environment from your smartphone, tablet computer, any Android device or from a PC with Internet access using this add-on service. Offering the same functions as if you were at home: start/stop, Mode Operation, Set Temperature, Room Temperature etc.
Experience the new, advanced functionality provided by Panasonic to achieve the best comfort and efficiency with the lowest energy consumption.
